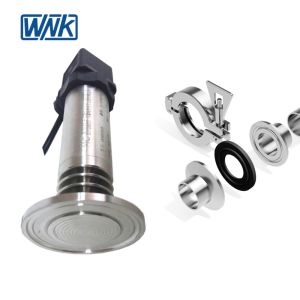

Food Grade Diaphragm Hygienic Industrial Pressure Transmitter 4 - 20mA Output

Brand Name : WNK

Model Number : WNK805

Place of Origin : Anhui, China

MOQ : 1

Price : $45.00 - $65.00/Pieces

Supply Ability : 2000 Piece/Pieces per Month hydraulic pressure regulator

Packaging Details : Each piece into individual carton with foam protection
Or as per client's request

Warranty : 1 YEAR

Customized support : OEM, ODM

Accuracy : 0.5% FS, 0.5% FS

Output signal : 4~20mA, 1-5V

Pressure range : -100Kpa ~ 60 MPa

Operating temperature : -20~85 ℃

Power supply : 10.5-55V DC, 10.5-30V DC

Housing material : 304/316SS

Measured media : liquid, gas, steam

Ex-proof : ExiaII CT4/CT6, ExidIICT6

Type : Diffused Silicon Pressure Transmitter

Product name : 2-Wire Signal Output Hydraulic Pressure Transmitter with LCD Display

Port : Shanghai/Ningbo

Contact Now

4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter

Specifications

The Series WNK805 Sanitary Pressure Transmitter is designed to meet the applications in food, dairy, beverage and pharmaceutical processing, liquid level control, and sanitary pipelines. The unit is fully sealed to withstand high pressure wash-down in Clean-in-Place and Sterilize-in-Place installations.

Tri-clamps are one of the most common types of pipe connections in the food, beverage, biotech, and pharmaceutical industries. This type of connection consists of a gasket compressed between two tri-clamp ferrules or flanges which are mechanically compressed in place with a clamp. Tri-clamp fittings are available in a variety of sizes, can be constructed from either steel or plastic, and can be either permanent or temporary. The clamp itself also comes in a variety of designs for ease of disassembly and cleaning.

It is therefore essential to select the right type of tri-clamp fitting to ensure the connection operates effectively in a given application. Choosing the right size and type of fitting can help minimize or eliminate contamination, bacterial growth, leaks, and deterioration of the connection material.

Food Grade Diaphragm Hygienic Industrial Pressure Transmitter 4 - 20mA Output

High Temperature Sanitary Clamp Flush Type Pressure Transmitter
Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range	0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa
Output signals	Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V, 0-10V DC
Accuracy	0.25%, 0.5%, 1.0%FS
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Display	LED (Optional)
Housing material	304SS, 316L
Mechanical connection	Clamp,Flush and Flange
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5~30 V DC
Ambient temperature	-40~85℃
Process temperature	-40~85℃

Features

- Standard ranges from vacuum to 60Mpa

- Accuracy up to ±0.25%

- 4-20 mA 2-wire output signal, others available

- Highly resistant to pressure spikes and vibration

- Stainless steel case and wetted parts

- Full range of process and electrical connections

- Assemble to diaphragm seals for special applications

- Suitable for gas, liquid, steam pressure measurement

- Intelligent digital circuit with precise temperature characteristic compensation

- Tantalum sensor contact for option for pressure measurement with corrosive media

Product Show
