WNK 4 - 20mA 0.5 - 4.5V Water Pressure Transmitter Sensor For Air Gas

Product Categories

Hefei WNK Smart Technology Co.,Ltd

Contact Now

Brand Name : WNK

Model Number : WNK80MA

Certification : CE/ROHS

Place of Origin : Anhui, China

Price : $8.90 - $29.90/Pieces

Supply Ability : 30000 Piece/Pieces per Month 3.3V pressure transducer

Packaging Details : paper carton or as per clients' requirement

Warranty : 1 YEAR

Customized support : OEM, ODM

Pressure range : 0-70Mpa

Accuracy : 0.5%FS, 1%FS

Output : I2C, SPI, 0.2-2.9V, 4~20mA, 0.5-4.5V and etc

Operation temperature : -40~130C

Electrical connector : DIN, Packard, Direct Cable, M12X1, Deustch

Ingress protection : IP67

Respond time : ≥1ms

Overload : 2x FS

Proof pressure : 3x FS

Pressure Port : G1/4, G1/2 ,1/8NPT, 1/4NPT, other

Port : Shanghai, Tianjin,

Contact Now

WNK 4-20mA 0.5-4.5V Water Pressure Transmitter Sensor For Air Gas

Product Description

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media	Liquid, Gas
Pressure range	0-70Mpa
Pressure measurment	Gauge Pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

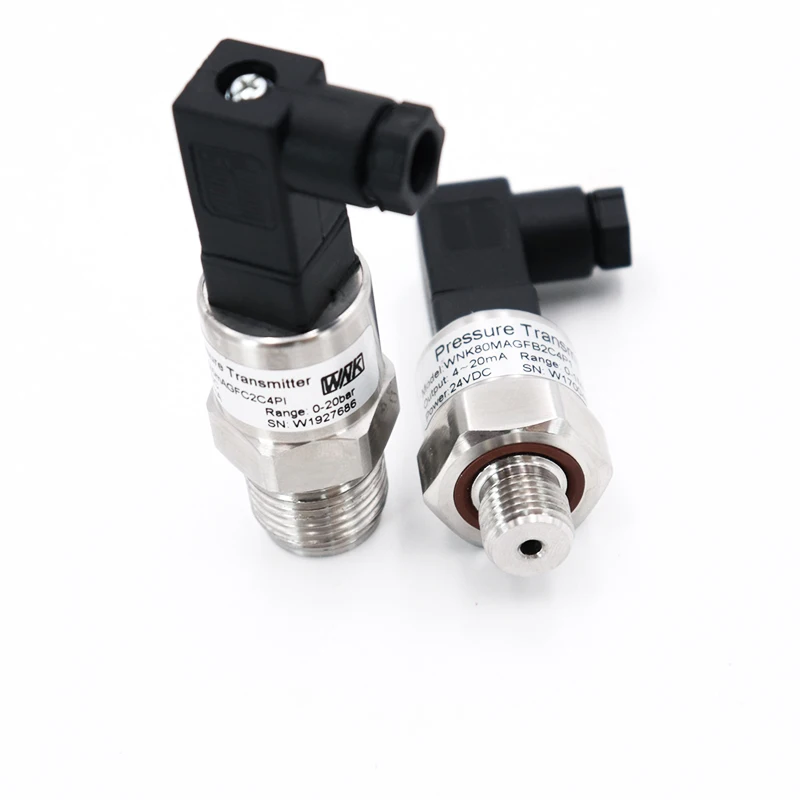

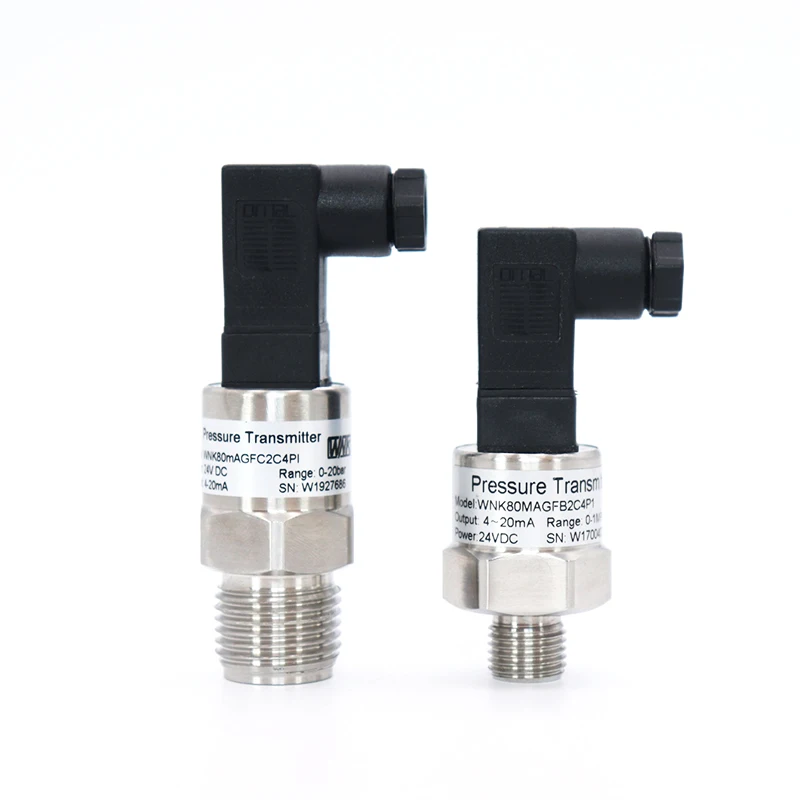

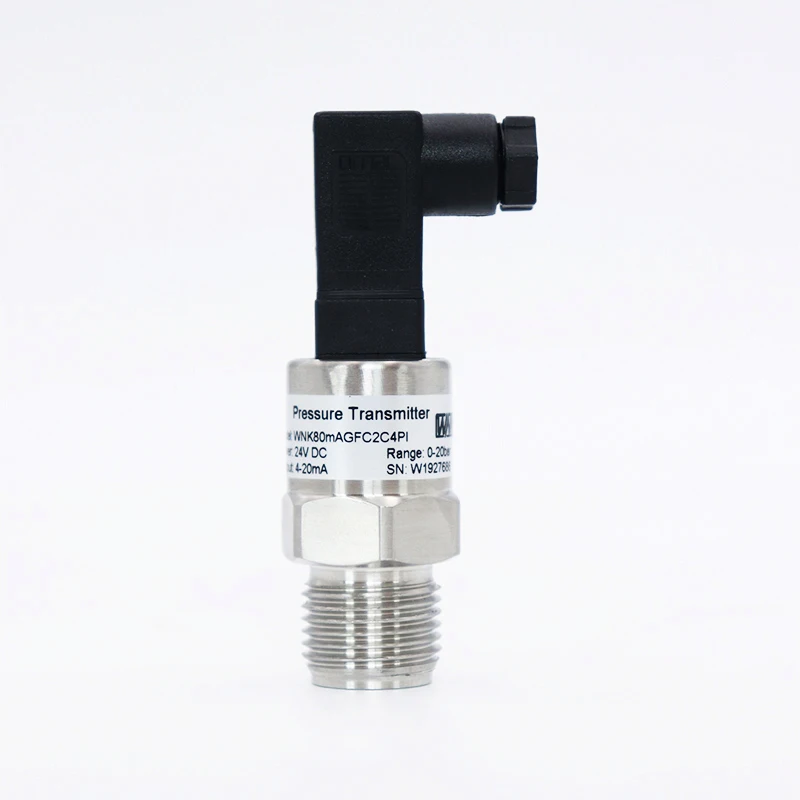

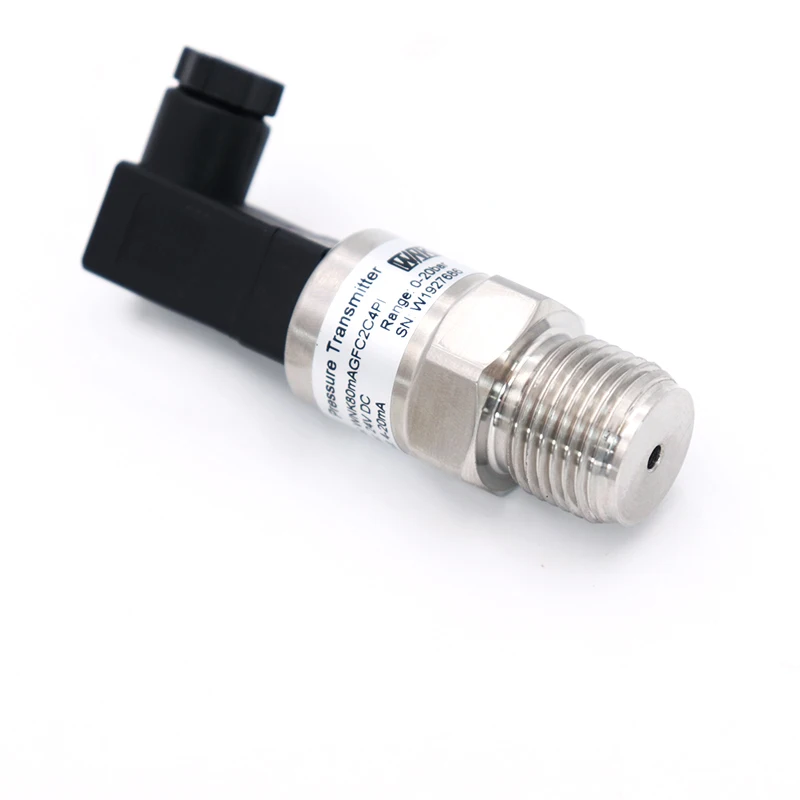

Product Show

WNK 4 - 20mA 0.5 - 4.5V Water Pressure Transmitter Sensor For Air Gas

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

A: 12 month from shipment date, for non-man-made damages.

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
